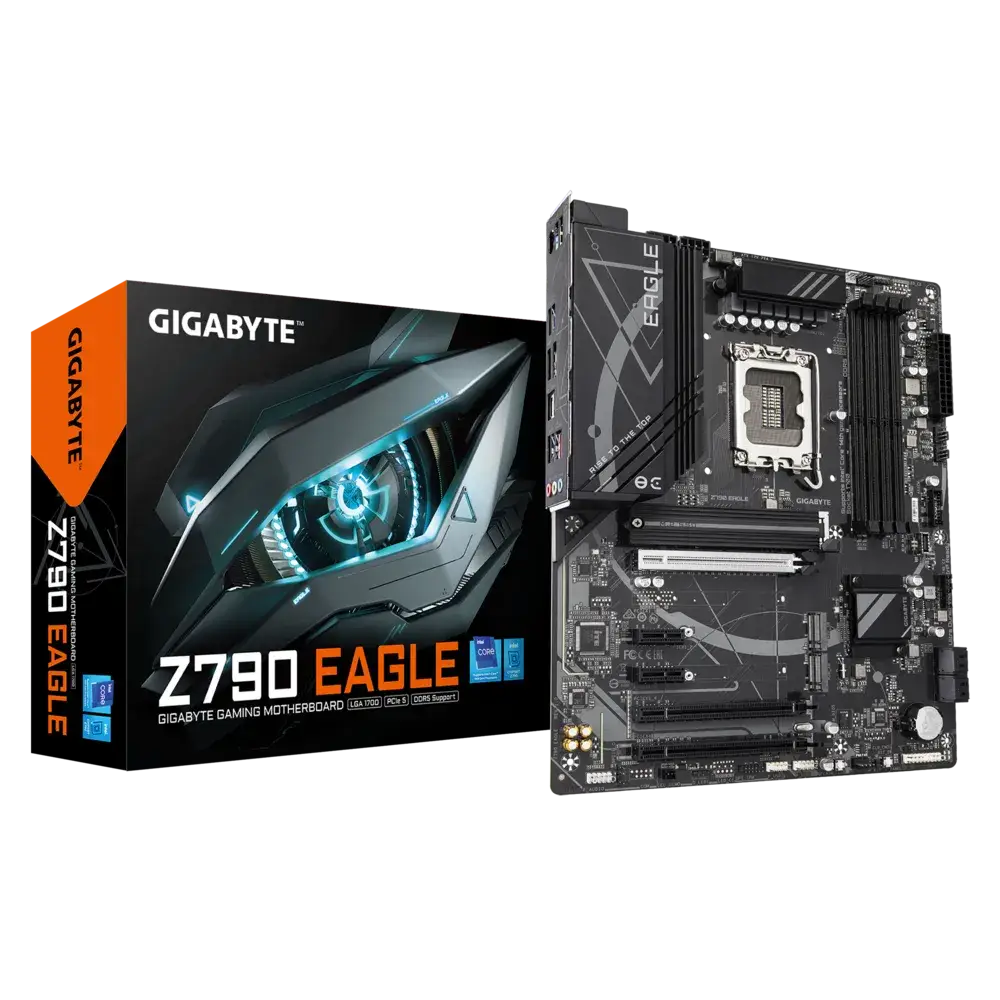

Gigabyte Z790 EAGLE ATX DDR5 Motherboard – Intel LGA1700

Level‑up your next‑gen Intel build with the Gigabyte Z790 EAGLE!

  • Intel® 14ᵗʰ / 13ᵗʰ / 12ᵗʰ Gen Core™ support
  • Twin 12 + 1 + 1 digital VRM for rock‑solid power
  • 4× DDR5 DIMMs – up to 7600 MT/s (OC)
  • 1× PCIe 5.0 x16 (EZ‑Latch) + 3× PCIe 4.0 M.2 with Thermal Guard
  • 2.5 GbE LAN, USB‑C® 10 Gb/s, DP & HDMI
  • Smart Fan 6 & enlarged MOSFET heatsink for cool, quiet performance
Warranty: 1 Year Local

₨ 64,999 ₨ 70,000

Built for Durable Performance

The Gigabyte Z790 EAGLE combines a robust Twin 12 + 1 + 1 phase digital VRM with a 6‑layer, 2 × copper PCB to feed the latest Intel® Core™ processors with exceptionally clean power. Oversized one‑piece MOSFET heatsinks and Smart Fan 6 auto‑tuning keep thermals in check—even under heavy overclocks.

Unlock Extreme DDR5 Speeds

With XMP 3.0, DDR5 7600 MT/s+ overclocking, shielded trace routing, and Gigabyte’s exclusive DDR5 Voltage Unlock, memory tuning is effortless. Simply load a profile or create your own and watch bandwidth soar.

Future‑Ready Connectivity

  • 1× PCIe 5.0 x16 slot with EZ‑Latch quick‑release
  • 3× PCIe 4.0 x4 M.2 slots, each protected by Thermal Guard
  • 2.5 GbE LAN for ultra‑low‑latency gaming & fast transfers
  • Rear USB‑C® 10 Gb/s + USB 3.2 Gen 2 Type‑A, plus front‑panel USB‑C®
  • DisplayPort 1.2 & HDMI 2.1 for integrated graphics output up to 4K 60 Hz

Easy‑Friendly Design Extras

From the handy Q‑Flash Plus BIOS update button (no CPU required) to the EZ‑Latch PCIe clip and multi‑function on‑board button (Reset / RGB / Direct‑to‑BIOS / Safe Mode), building and troubleshooting are faster than ever.

Immersive Hi‑Fi Audio

Enjoy rich, low‑noise sound courtesy of high‑end audio capacitors and an isolated audio PCB—perfect for gaming, content creation, or streaming.

Software & BIOS

The redesigned UC BIOS with Quick Access sidebar pairs with Gigabyte Control Center for one‑stop RGB, fan‑curve, and driver updates. Plus, bundled Norton® Internet Security keeps your rig protected from day one.

Gigabyte Z790 EAGLE DDR5 Motherboard Price in Pakistan

The Gigabyte Z790 EAGLE ATX DDR5 motherboard is designed for Intel 12th and 13th Gen processors on the LGA1700 socket. Featuring DDR5 memory support, enhanced thermal design, and PCIe expansion options, it offers reliable performance for gaming and productivity. A solid choice for enthusiasts building future-ready PCs. Available across Pakistan with the best price guaranteed.

Category: Tags: ,
Gigabyte Z790 EAGLE – Technical Specifications
Form FactorATX – 30.5 cm × 24.4 cm
CPU Support14ᵗʰ / 13ᵗʰ / 12ᵗʰ Gen Intel® Core™, Pentium® Gold, Celeron® – LGA1700
ChipsetIntel® Z790 Express
Power DesignTwin 12 + 1 + 1 Digital VRM (Low RDS(on) MOSFETs) — 6 + 6 parallel phases
Memory4 × DDR5 DIMM (dual‑channel) up to 256 GB
7600 MT/s (O.C.)*
ECC/Non‑ECC Un‑buffered, XMP 3.0 support
Expansion Slots1 × PCIe 5.0 x16 (CPU)
1 × PCIe 4.0 x16 (x4, Chipset)
1 × PCIe 3.0 x16 (x1, Chipset)
2 × PCIe 3.0 x1
StorageCPU: 1 × M.2 (22110/2280, PCIe 4.0 x4/x2)
Chipset: 1 × M.2 (2280, PCIe 4.0 x4/x2)  |  1 × M.2 (2280, SATA + PCIe 4.0 x4/x2)
4 × SATA 6 Gb/s
RAID 0/1/5/10 (NVMe & SATA)
Graphics Outputs*1 × HDMI 2.1 (4K 60 Hz)  |  1 × DisplayPort 1.2 (4K 60 Hz)
AudioRealtek® HD Audio CODEC, High‑End Capacitors, S/PDIF Out
NetworkingRealtek® 2.5 GbE LAN (RJ‑45)
Rear I/O1 × USB‑C® 3.2 Gen 2 (10 Gb/s)
1 × USB 3.2 Gen 2 Type‑A (red)
4 × USB 3.2 Gen 1 Type‑A
2 × USB 2.0
HDMI, DisplayPort, 2.5 GbE, 3 × Audio jacks, PS/2
Internal HeadersUSB‑C® 3.2 Gen 1, USB 3.2 Gen 1, 2 × USB 2.0
4 × SATA, 3 × M.2
2 × Addressable RGB, multiple fan & pump headers
BIOS256 Mbit UEFI AMI, Q‑Flash & Q‑Flash Plus support
Operating SystemMicrosoft Windows 11 / 10 – 64‑bit
