ASUS TUF GAMING B650‑PLUS AM5 ATX Motherboard – PCIe 5.0

Name: ASUS TUF GAMING B650‑PLUS AM5 ATX Motherboard – PCIe 5.0
Brand: Qbit
SKU: 10113
Price: 67999 PKR
Availability: InStock
Rating: 5 (1 reviews)

Built for next‑gen Ryzen™ gaming rigs, the ASUS TUF GAMING B650‑PLUS pairs AMD’s latest AM5 platform with military‑grade durability and game‑ready features.

AM5 socket – Ready for Ryzen™ 9000 / 8000 / 7000 CPUs
12 + 2 + 2 60 A power stages & enlarged VRM heatsinks
PCIe 5.0 x4 M.2 slot + 2× PCIe 4.0 M.2
DDR5 7600 MHz (OC), 128 GB dual‑channel
Intel® 2.5 Gb Ethernet & Two‑Way AI Noise Cancelation
Rear USB 3.2 Gen 2×2 Type‑C® + front‑panel Type‑C® header
ATX form factor, Aura Sync RGB headers, Q‑Latch & Q‑LED

Warranty: 1 Year Local

₨ 67,999 ~~₨ 75,000~~

Overview

The ASUS TUF GAMING B650‑PLUS distills the essential elements of AMD’s AM5 platform into a tough, feature‑rich motherboard that’s ready for marathon gaming and advanced AI PC applications. Engineered with military‑grade components, a robust 12 + 2 + 2 DrMOS VRM design and comprehensive cooling, it delivers rock‑solid stability for Ryzen™ 9000, 8000 and 7000 processors.

Game‑Ready Performance

PCIe 5.0 M.2 support for next‑gen NVMe SSDs, plus two PCIe 4.0 M.2 slots and four SATA 6 Gb/s ports.
DDR5 7600 MHz (OC) support with OptiMem II trace routing for higher frequency headroom and lower latency.
ASUS SafeSlot Core+ reinforced PCIe 4.0 x16 slot to protect heavy GPUs.

Reliable Power & Cooling

12 × 60 A VCORE + 2 × 60 A SOC + 2 auxiliary stages supply ample, clean power for high‑core‑count CPUs.
Large, high‑mass VRM heatsinks, M.2 heatsink and multiple 4‑pin fan headers keep thermals in check.
ProCool solid‑pin power connectors and six‑layer PCB enhance durability.

Next‑Gen Connectivity

Rear USB 3.2 Gen 2×2 Type‑C® (20 Gb/s) and front USB 3.2 Gen 1 Type‑C® header.
Realtek 2.5 Gb Ethernet with TUF LANGuard surge protection.
DisplayPort 1.4 (8K @ 60 Hz) and HDMI 2.1 (4K @ 60 Hz) for iGPU output.

Crystal‑Clear Audio & AI Noise Cancelation

The Realtek 7.1 HD audio codec is paired with premium capacitors, audio shielding and DTS Audio Processing for immersive sound. Two‑Way AI Noise Cancelation cleans up both outgoing and incoming voice audio in real time.

DIY‑Friendly Features

M.2 Q‑Latch, Q‑DIMM slot latches and on‑board Q‑LED for quick, tool‑free builds and easy troubleshooting.
Pre‑mounted I/O shield and BIOS FlashBack™ button simplify upgrades.
Addressable Gen 2 RGB & traditional RGB headers with Aura Sync lighting control.

Software Suite

Armoury Crate gives you one‑stop control of RGB, Fan Xpert 4, power saving and more, while AI Suite 3 offers advanced overclocking via TurboV EVO.

ASUS TUF B650‑PLUS AM5 Motherboard Price in Pakistan

The ASUS TUF GAMING B650‑PLUS AM5 ATX motherboard delivers rock-solid stability and performance for AMD Ryzen 7000 Series processors. Featuring PCIe 5.0 support, robust power stages, and military-grade components, it’s engineered for durability and high-end gaming. With enhanced cooling and next-gen connectivity, it’s ideal for demanding PC builds. Available across Pakistan with the best price guaranteed.

Category: Motherboard Tags: am5 motherboard, Asus, ATX motherboard, gaming motherboard, PCIe 5.0

ASUS TUF GAMING B650‑PLUS ‑ Detailed Specifications
Model	TUF GAMING B650‑PLUS
CPU Support	AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors (Socket AM5)
Chipset	AMD B650
Memory	4× DDR5 DIMM, up to 128 GB Speeds: 7600 + OC / 7200 OC / 7000 OC / … / 4800 JEDEC Dual‑channel, AMD EXPO™ & OptiMem II, On‑Die ECC
Graphics Outputs	1× DisplayPort 1.4 (8K @ 60 Hz) 1× HDMI 2.1 (4K @ 60 Hz)
Expansion Slots*	1× PCIe 4.0/3.0 x16 (SafeSlot Core+, from CPU) 1× PCIe 4.0 x16 (max x4, from chipset) 2× PCIe 4.0 x1 (from chipset) *Lane configuration varies with CPU generation.
Storage	M.2 _1 – 2242/2260/2280 PCIe 5.0 x4 (Ryzen 9000/7000) / PCIe 4.0 x4 (Ryzen 8000) M.2 _2 – 2242/2260/2280/22110 PCIe 4.0 x4 M.2 _3 – 2242/2260/2280 PCIe 4.0 x4 (shares bandwidth with PCIEX16_2) 4× SATA 6 Gb/s, RAID 0/1/10 via AMD RAIDXpert 2
Networking	Realtek 2.5 Gb Ethernet, TUF LANGuard
Audio	Realtek 7.1 HD Audio CODEC, DTS Audio Processing, premium capacitors, audio shielding

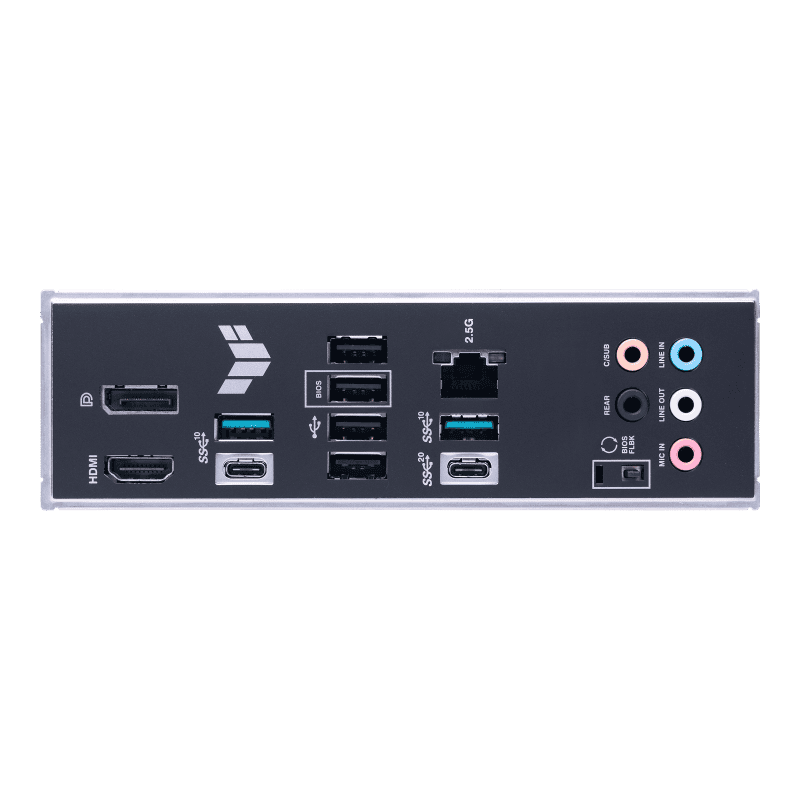

Rear I/O Ports	1× USB 3.2 Gen 2×2 Type‑C® 3× USB 3.2 Gen 2 (2× Type‑A, 1× Type‑C®) 4× USB 2.0 1× DisplayPort, 1× HDMI® 1× 2.5 Gb LAN (RJ‑45) 5× Audio jacks 1× BIOS FlashBack™ button
Internal Headers	1× USB 3.2 Gen 1 Type‑C® 1× USB 3.2 Gen 1 header (2 ports) 2× USB 2.0 headers (4 ports) 3× Addressable Gen 2 RGB, 1× RGB header 1× Thunderbolt™ (USB4®) header
Cooling & Power	1× 4‑pin CPU Fan, 1× CPU OPT 1× 4‑pin AIO Pump, 4× 4‑pin Chassis Fans 24‑pin ATX, 8‑pin +12 V, 4‑pin +12 V ProCool connectors
Special Features	TUF Protection, SafeSlot Core+, Q‑LED, M.2 Q‑Latch, Aura Sync, Two‑Way AI Noise Cancelation, Armoury Crate
BIOS	256 Mb UEFI AMI BIOS with BIOS FlashBack™ support
OS Support	Windows 11 & Windows 10 64‑bit
Form Factor	ATX – 30.5 cm × 24.4 cm (12″ × 9.6″)
